Weblogic Monitoring Dashboard : WLDF console extension

Using the Monitoring Dashboard - Monitoring Weblogic Runtime Performance

Monitoring Weblogic Resources

Keywords : Monitoring Dashboard, Weblogic Monitoring, Weblogic WLDF, Diagnostic Console, Weblogic Performance Monitoring, Weblogic Health Monitoring, weblogic administration console monitoring dashboard, weblogic admin console monitoring

You can monitor the run time performance of  resources using weblogic monitoring dashboard also called WLDF Console Extension

To access monitoring dashboard -

http://<hostname>:<admin_port>/console/dashboard

Example - http://localhost:40510/console/dashboard , where my weblogic admin server is running on localhost on port 40510

OR

Access admin console > click on your domain >  click on Home tab

Keywords : Monitoring Dashboard, Weblogic Monitoring, Weblogic WLDF, Diagnostic Console, Weblogic Performance Monitoring, Weblogic Health Monitoring, weblogic administration console monitoring dashboard, weblogic admin console monitoring

click on "Monitoring Dashboard" under chart and graphs option on right hand side

Keywords : Monitoring Dashboard, Weblogic Monitoring, Weblogic WLDF, Diagnostic Console, Weblogic Performance Monitoring, Weblogic Health Monitoring, weblogic administration console monitoring dashboard, weblogic admin console monitoring

You will get below console

Keywords : Monitoring Dashboard, Weblogic Monitoring, Weblogic WLDF, Diagnostic Console, Weblogic Performance Monitoring, Weblogic Health Monitoring, weblogic administration console monitoring dashboard, weblogic admin console monitoring

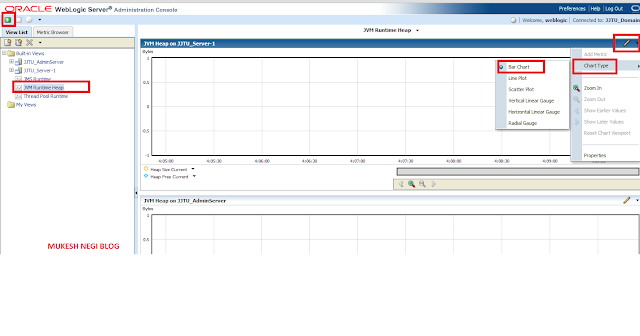

Select JVMRuntime Heap option on left hand side to monitor heap usages, select the graph type you want from right hand corner option, and click on run button ( in green at left corner ) to monitor.

by default it will monitor heap usages in every 30 minutes of interval and will plot the graph like below

( orange bar showing total heap allocated and blue showing total used one )

To stop monitoring click on red button at left upper corner

Similarly you can choose other options to monitor

Keywords : Monitoring Dashboard, Weblogic Monitoring, Weblogic WLDF, Diagnostic Console, Weblogic Performance Monitoring, Weblogic Health Monitoring, weblogic administration console monitoring dashboard, weblogic admin console monitoring

If you are not able to see this monitoring dashboard option then follow below steps to install it on your domain

Keyword : Installing WLDF console extension or monitoring dashboard

1. Go to WL_HOME\server\lib\console-ext directory and check if you have diagnostics-

     console-extension.jar there

2.  Copy diagnostics-console-extension.jar file to your DOMAIN-DIR/console-ext directory

3.   Restart Admin Server
